Dissolved oxygen
Continuous DO measurement with configurable low and high alarm thresholds, live values, RAW information and history.
Dissolved oxygen · Water temperature · Alarms
Welcome to ERMOXY
A complete remote monitoring and alarm platform that keeps watch over dissolved oxygen, water temperature and device availability around the clock.
24/7 monitoring
Remote access
E-mail · SMS · Push
One integrated platform
What ERMOXY does
ERMOXY combines field measurement, secure communication, server processing and clear user notifications into one system. The goal is simple: show what is happening in the water and warn the user when attention is needed.
Water temperature
Continuous water-temperature measurement with independent alarm thresholds and long-term trend visibility.
Smart alarms
Server-side alarm processing with e-mail, SMS and push delivery, including configurable device-OFFLINE detection.
Remote access
Responsive access from phone, tablet or computer, with user permissions and a protected administration workflow.
From sensor to user
How the complete system works
SensorDO + temperature
IsoLinkisolated interface
Field unitmeasurement + processing
Wi-Fi / MQTTsecure communication
Serverdata + services
Web + alertsphone · tablet · PC
System
ERMOXY
ERMOXY combines field measurement, secure communication, server processing and clear user notifications into one system. The goal is simple: show what is happening in the water and warn the user when attention is needed.
DO + temperature
isolated interface
secure communication
phone · tablet · PC
Sensor troubleshooting & maintenance
Sensor data invalid? Start here.
Check the signal path first
If both DO and temperature are invalid, first inspect the probe cable, connector and IsoLink/field-unit connection. If temperature is normal but DO is invalid or unstable, continue with the probe checks below.
Inspect the membrane and air bubbles
Check the membrane for scratches, holes, tears or wrinkles. Do not touch the membrane with your fingers. If air is trapped below the membrane, refill it because bubbles can make the reading unstable.
Remove deposits carefully
If deposits are visible on the sensor surfaces, clean them gently with the supplied scouring pad without damaging the plastic body, then rinse before refilling and reassembling the probe.
Verify water movement
Water movement across the membrane is important for accurate DO readings
Stabilize, check RAW and verify calibration
After replacing membrane or electrolyte, allow a few minutes for stabilization. Use ERMOXY Instant Reading to confirm stable RAW/temperature values, then verify calibration with a reliable reference. If the sensor remains invalid, contact ERMOXY technical support.

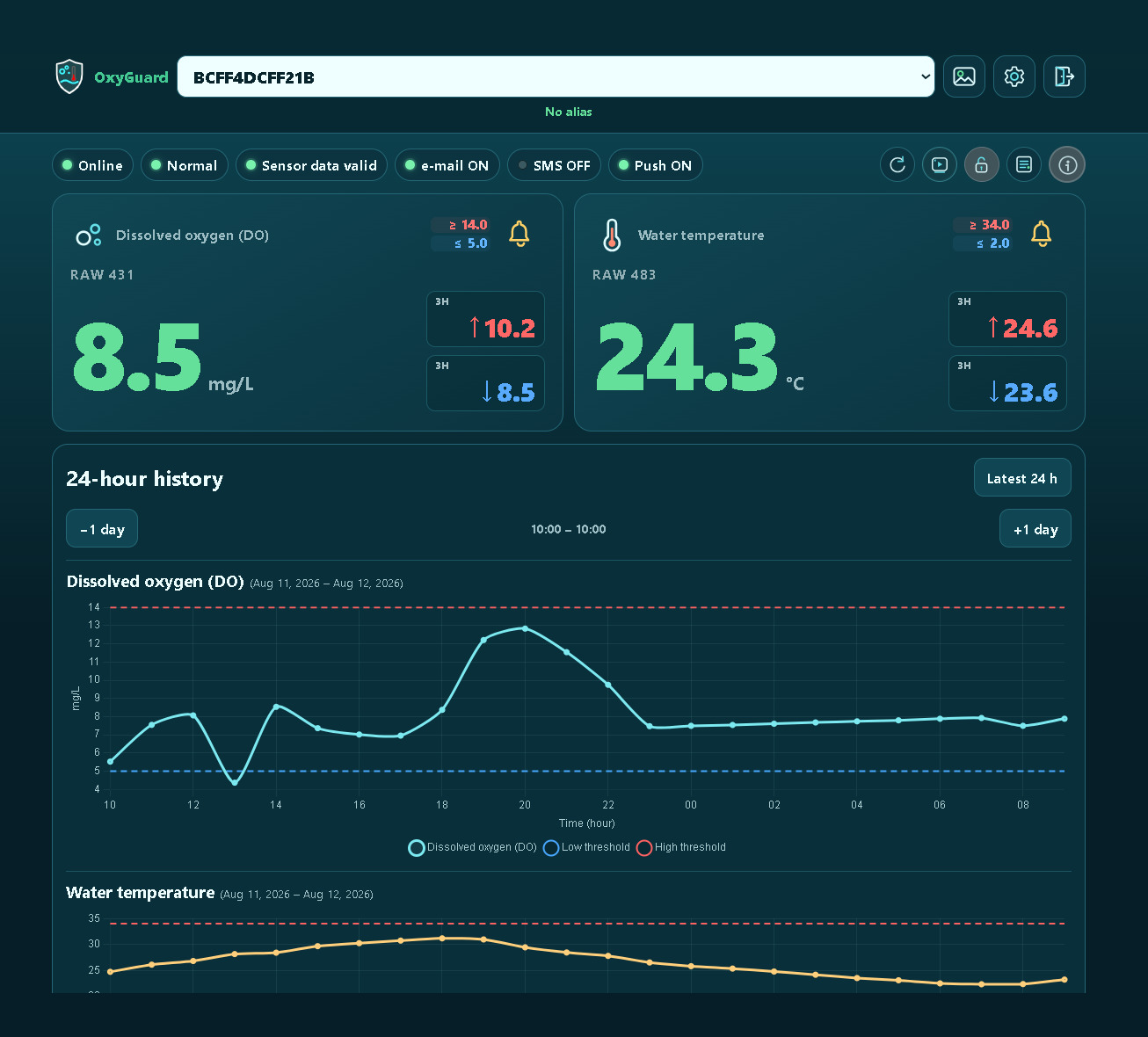

See the important values immediately
The current dashboard puts dissolved oxygen and water temperature first, with live values, RAW readings, alarm thresholds and the latest 3-hour measured high/low peaks visible in the same panel.
The status strip shows device availability, sensor status, event-log access and notification-channel state, while the 24-hour history keeps both DO and temperature trends directly below the live panels.
- Live DO and temperature values
- 3-hour measured low/high peaks
- Alarm thresholds, lock state, event log and notification status
- 24-hour DO/temperature history and device information

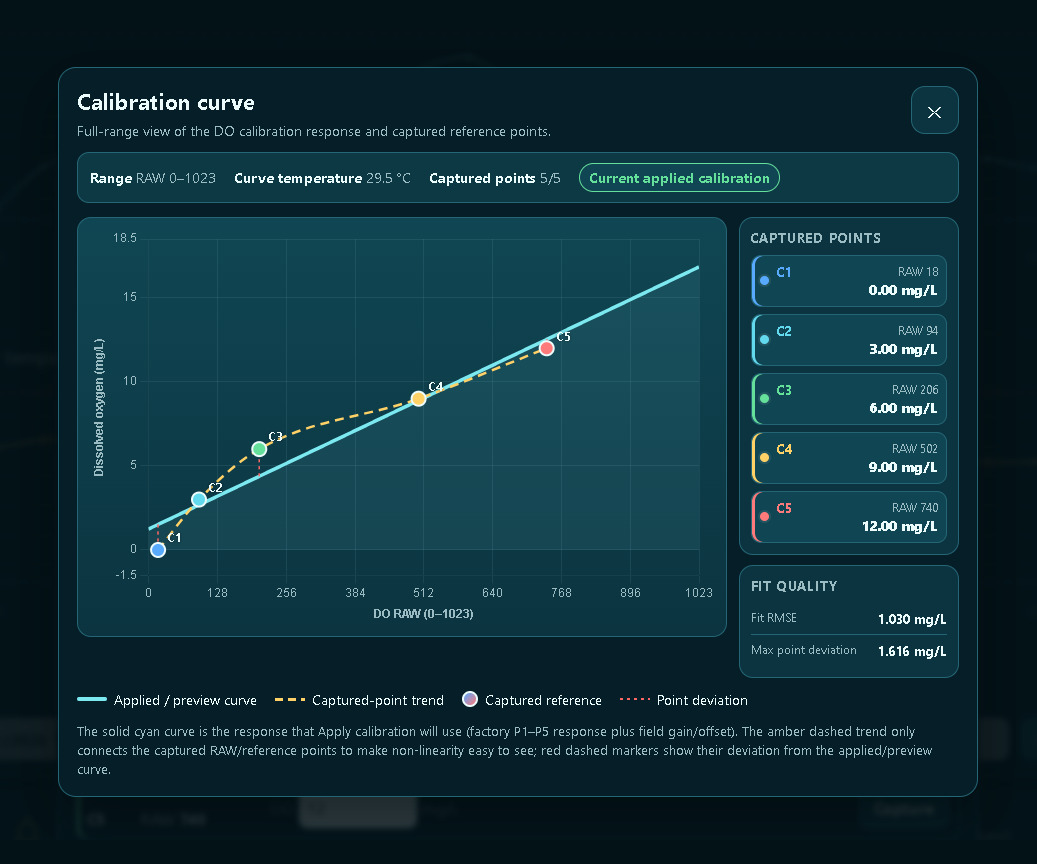

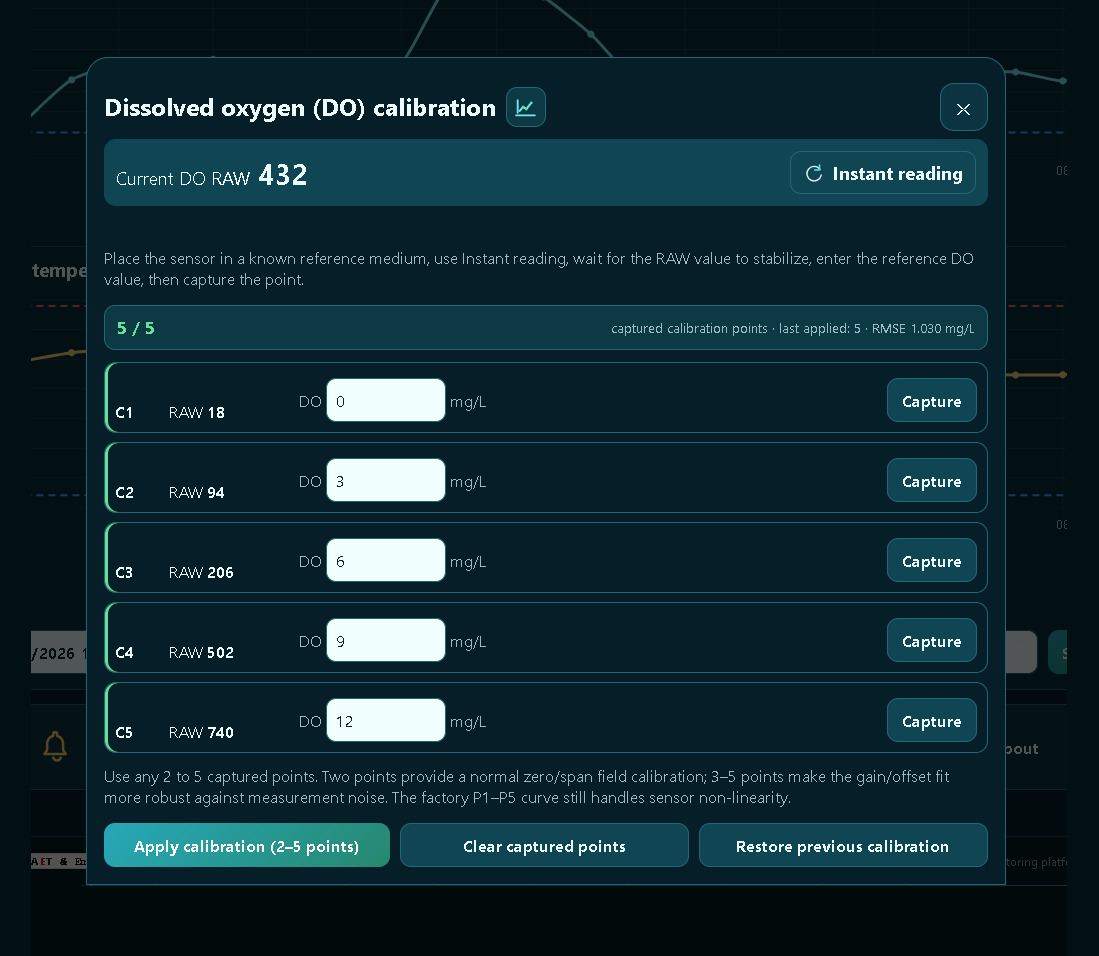

Field calibration with visible quality
The current calibration workflow supports 2–5 captured field-reference points. Instant reading updates the current DO RAW value so each point can be captured only after the sensor has stabilised in the reference medium.
Before applying the result, the full calibration response can be reviewed together with the captured points, staged fit, RMSE and maximum point deviation. The preview makes calibration quality and sensor non-linearity visible before committing the new correction.
- Full calibration range
- 2–5 captured reference points
- Instant reading, staged fit and applied-curve preview
- RMSE and deviation analysis
Alarm and availability monitoring
ERMOXY watches even when you are not looking
The server evaluates incoming measurements and device communication. If a configured threshold is exceeded or the device stops reporting for the configured timeout, ERMOXY can generate an alarm and later report recovery when fresh data returns.
DO thresholdsIndependent low/high alarm limits.
Temperature thresholdsIndependent low/high water-temperature limits.
Device OFFLINEConfigurable 5–60 minute communication timeout.
Notification channelsE-mail, SMS and push can be enabled independently.
Important operational note
ERMOXY is a monitoring and alarm aid. Critical installations should also use suitable independent safeguards because power, sensors, calibration, network connectivity, server services or notification providers can fail.
Q/A
Questions users often ask
Short answers to the most important practical questions about ERMOXY.
What is ERMOXY?
ERMOXY is a 24-hour monitoring and alarm platform for dissolved oxygen, water temperature and device availability in remote water installations.
How does ERMOXY measure the water?
A field sensor provides dissolved-oxygen and temperature information through the IsoLink interface to the ERMOXY field unit, which processes the values and sends them to the server.
Where can I see the measurements?
The responsive Web application works on phone, tablet and computer. It shows live values, history, device state, alarm thresholds and recent measured peaks.
How do alarms work?
You configure acceptable low and high thresholds. The server evaluates incoming measurements and can send e-mail, SMS or push alerts when a condition requires attention.
What happens if the device stops communicating?
The server monitors last_seen. If communication is missing longer than the configured timeout, ERMOXY can send a Device OFFLINE alert and an ONLINE recovery when fresh telemetry returns.
Does ERMOXY support calibration?
Yes. The system supports field calibration of the dissolved-oxygen channel, including 2–5 captured reference points, gain/offset calculation, RMSE and deviation analysis.
Can several users or devices be managed?
Yes. Administrator tools support multiple devices, multiple users and permission-controlled access to configuration and calibration functions.
Do I need to watch the dashboard continuously?
No. That is one of the main purposes of ERMOXY. The system monitors configured conditions continuously; users normally review the dashboard periodically and react to alarms when necessary.
Does ERMOXY replace every safety system?
No. It is a monitoring and alarm aid. Critical installations should retain independent safeguards appropriate to the risk and process.
How can I ask for help?
Use the contact section below or e-mail szabo.gyozo@erma.ro. No telephone number is published on this page.
Contact
Questions about ERMOXY?
For product information, technical questions or project discussions, send us a message. No telephone number is required or published on this page.
